36V 48V 60V 72V 20Ah electric bike battery for original Samsung 18650 cell 10S 13S 16S 20S 48V 72V 1500W 3000W lithium battery

Type Lithium Battery

Voltage 48v

Capacity 10 - 20Ah

Brand Name BOOANT

Battery Type For Original Samsung 2600mAh 18650 3.7V Cell

Battery capacity 20.8Ah

Battery voltage(Normal) 48V

Charger CC/CV 54.6V 5A

Peak current(A) 150A

BMS 50A Supports 100W--2000W Motor

Application E-Bike / E-Scooter / Electric Bicycle

Cell Combination 13 Series with 8 Parallel

MAX continuous discharge current (A) 50A

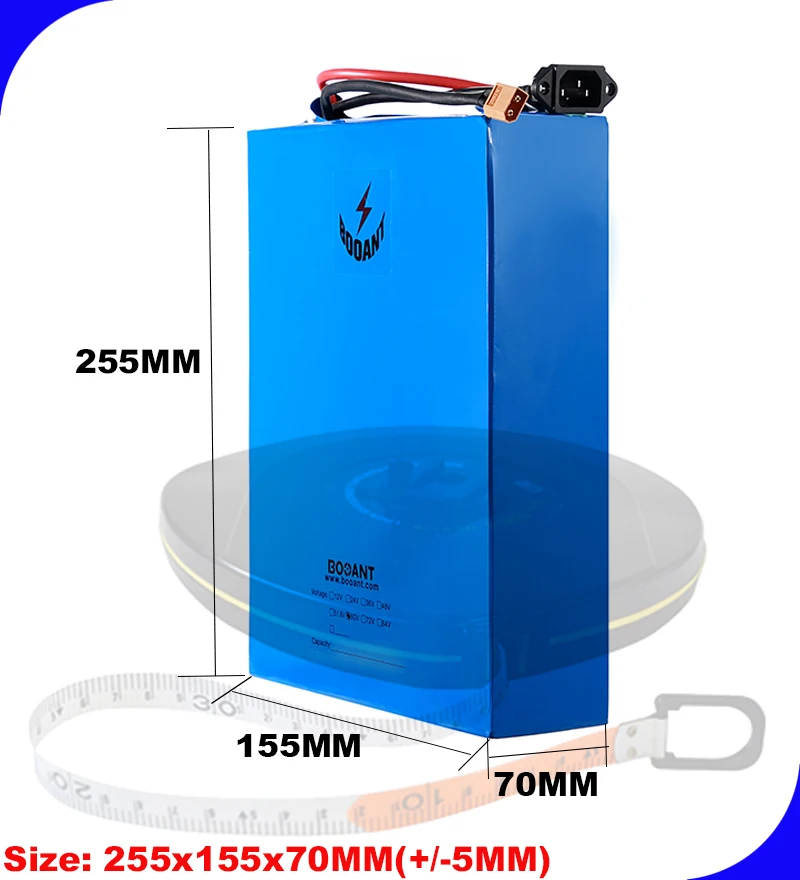

Battery Size 255mmx160mmx70mm(+/-5mm)

Cell Quantity (parallel x series) 104pcs

36V 48V 60V 72V 20Ah electric bike battery for original Samsung 18650 cell 10S 13S 16S 20S 48V 72V 1500W 3000W lithium battery AboutBattery Parameter： For SAMSUNG 18650 2600mAh 3.7V Cell: 36V 20.8Ah 1500W(with 50A BMS), 10S 8P, 200mmx155mmx70mm(+/-5mm); 48V 20.8Ah 2000W(with 50A BMS), 13S 8P, 255mmx155mmx70mm(+/-5mm); 60V 20.8Ah 2500W(with 50A BMS), 16S 8P, 310mmx155mmx70mm(+/-5mm); 72V 20.8Ah 3000W(with 50A BMS), 20S 8P, 380mmx155mmx70mm(+/-5mm); Battery Features： About Battery Cell: NOTE： Dear friend, because of the different batch or production location of the battery cell， its coding will be different，thank you！ Parameter Information List Battery Model 48V 20.8Ah 2000W Voltage 48V Capacity 20.8Ah Cell Type For Original Samsung ICR18650 2600mAh 3.7V BMS (Built-in) 50A Charge Way of charge CC/CV Standard charge Current 2A Max charge current 5A Charge Cut-off Voltage 54.6V Cell Overcharge protection Voltage 4.2V/CELL Discharge Continuous Discharge Current 50Amp(Max) Peak Discharge Current 150Amp Cell Overdischarge Voltage 3.0V/cell Discharge Cut-off Voltage 39V Cycle Life More than 800--1000 times Safety test No fires ,No explosion Over charge Safety Test Crush Safety test Needling safety test 130 C high Temperature safety test Weight(Battery) About 5kg Size 255mmx155mmx70mm（+/-5mm） Fit motor power 100W--2000W(MAX) Working Temperature 0C—45C -20C---65C Retention of charge >95% Charging time 4--4.5 Hours Application E-Bike,E-motorcycle,E-scooter Warranty One year Product Package： 1. Lithium Battery packs with PVC case 2. Built-in BMS (protection board) 3. 54.6V 5A Charger 4. Power Cable (Supply EU/ UL /AUS/ BS Plug) About Discharge port: Client: We offer these discharge connector as showed on picture. You can choose which one you want,If you have not confirmed in time，we will send the productwhich our main picture showed！ About the power cable： Client: We offre these power cable as showed on picture,you can choose which one you Want,if you have not confirmed in time,we will send the power cable that commonly Usedin your country. Product Show: About BMS: About Shipping Method: About our factory： Warm Tips：
